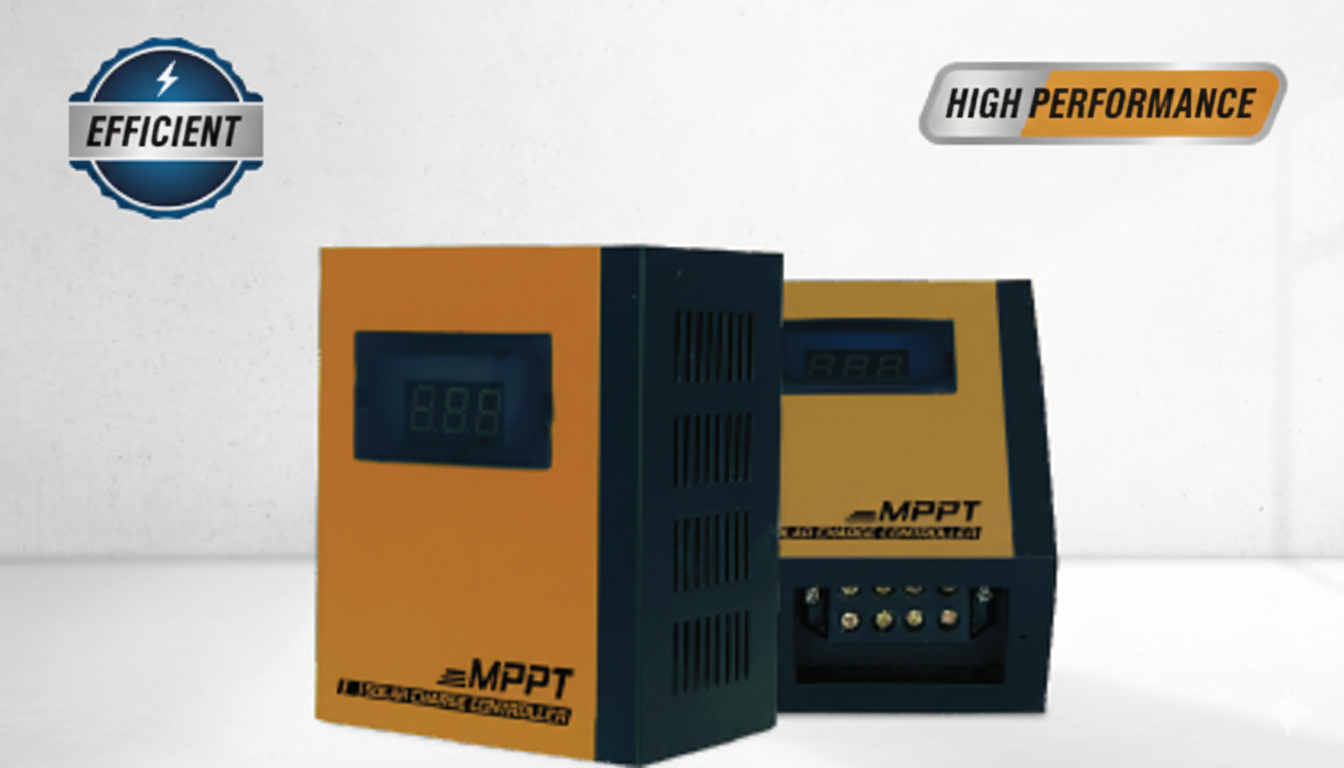

MPPT Solar Charge Controller (Solar Series)
Advanced MPPT Solar Charge Controller incorporated with Microchip and ST DSP Engines. Designed with IGBT technology, it supports wide range MPPT input and multiple battery types including Tubular, SMF, and Lithium.
Specifications
- • Type :MPPT
- • Current:30A (12/24V) / 60A (48V-420V)
- • Efficiency: >95%
- • Pv module capacity:Up to 5000W (depending on system voltage)
- • Display type:7 Segment
- • Voltage support:12V, 24V, 48V, 96V, 120V, 180V, 240V, 360V, 420V
Key Features
- • IGBT Based Design with Microchip & ST DSP Engines
- • Wide Range MPPT Input
- • Multiple Battery Selection: Tubular (Default), SMF, Lithium
- • 7 Segment Display (Battery Voltage & Current)
- • 5 Stage Charging: Soft Start, Boost, Absorption, Float & Equalize
- • Comprehensive Protections: Reverse Polarity, Over Current, High Voltage
