OMRON Power Supplies

OMRON is a globally recognized leader in industrial automation and control systems, offering a wide range of power supplies known for reliability, durability, and innovative features. OMRON power supplies are designed to deliver consistent voltage and current under challenging industrial conditions.

OMRON Power Supply Series and Specifications

1.S8VK Series

• The S8VK Series is a compact and rugged power supply series ideal for industrial automation systems. These power supplies are engineered for flexibility and high performance in demanding environments.

Key Models:

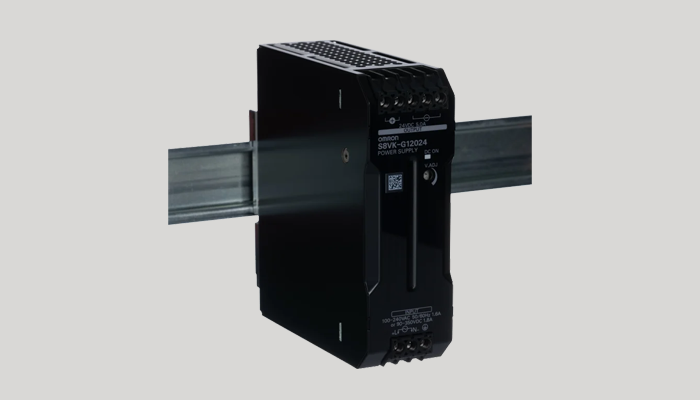

• 1. S8VK-G Series:

Parameter	Specification
Input Voltage	100-240 VAC (Single-phase)
Output Voltage	5V, 12V, 24V, 48V
Power Ratings	15W, 30W, 60W, 120W, 240W, 480W
Efficiency	Up to 93%
Operating Temperature	-40°C to +70°C

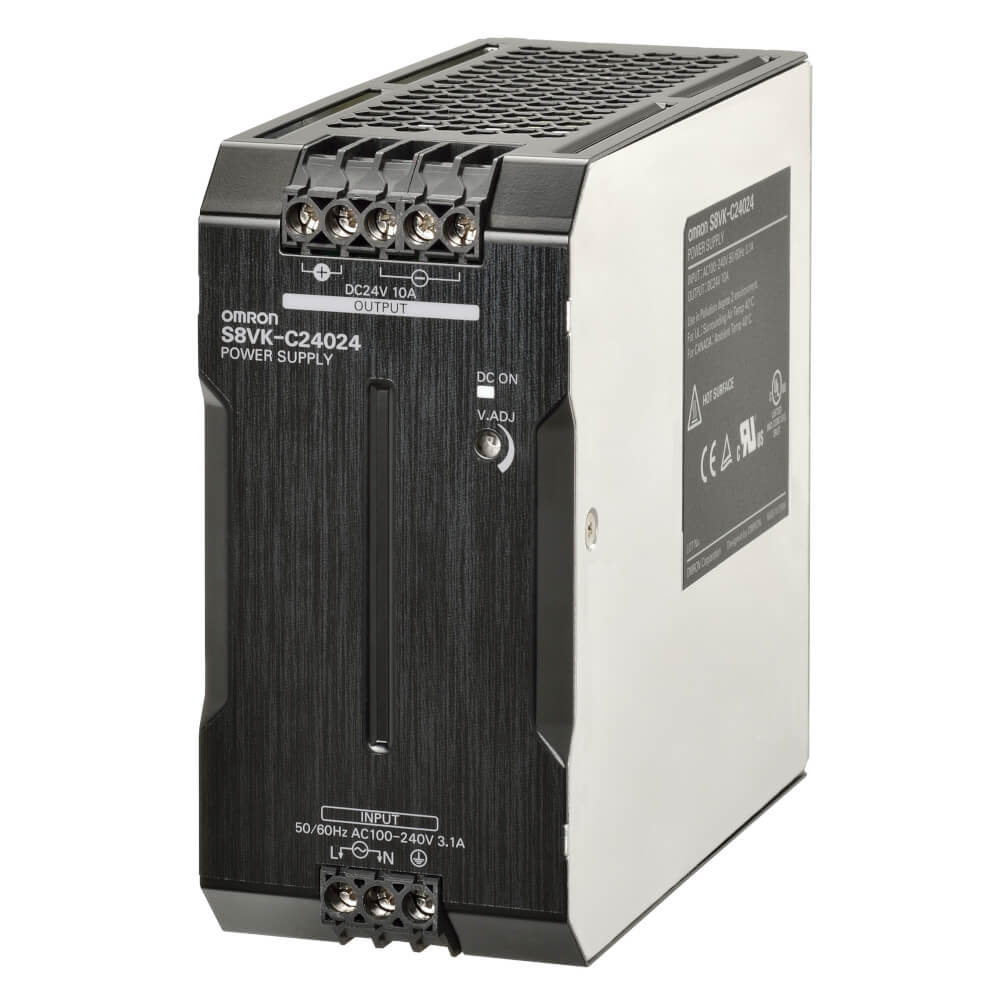

2. S8VK-C Series:

o Specifications:

Parameter	Specification
Input Voltage	85-264 VAC
Output Voltage	5V, 12V, 24V
Power Ratings	30W, 60W, 120W, 240W
Efficiency	Up to 90%
Operating Temperature	-25°C to +60°C

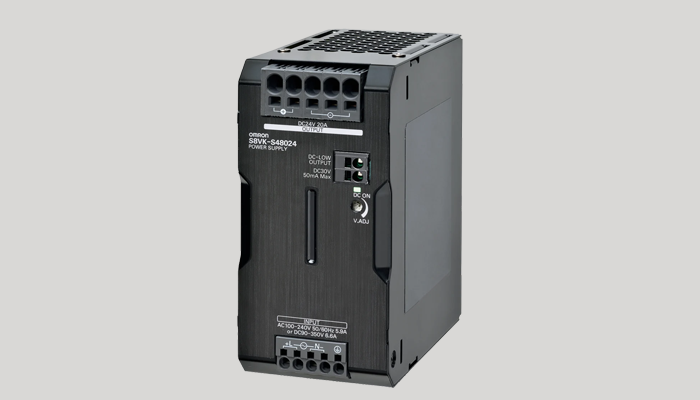

3. S8VK-S Series:

o Specifications

Parameter	Specification
Input Voltage	85-264 VAC / 90-350 VDC
Output Voltage	24V DC
Power Ratings	15W, 30W, 60W
Efficiency	Up to 92%
Operating Temperature	-20°C to +60°C

• • Applications : Used in simple machinery, HVAC systems, and small-scale automation processes.

2. S8JX Series

• The S8JX Series provides cost-effective, general-purpose power supplies with high durability and flexibility for industrial and commercial applications.

Key Models:

1. S8JX-G Series:

o Specifications

Parameter	Specification
Input Voltage	100-240 VAC
Output Voltage	5V, 12V, 24V
Power Ratings	50W, 100W, 150W, 300W
Efficiency	Up to 88%
Operating Temperature	-10°C to +50°C

2. S8JX-P Series:

o Specifications

Parameter	Specification
Input Voltage	100-240 VAC
Output Voltage	24V DC
Power Ratings	50W, 100W, 200W

3. S8AS Series

The S8AS Series offers advanced power supply solutions with integrated branch circuit protection for multi-output applications

o Specifications

Parameter	Specification
Input Voltage	100-240 VAC
Output Voltage	24V DC
Power Ratings	240W, 480W
Efficiency	Up to 92%

MEANWELL Power Supplies

MEANWELL is a globally renowned manufacturer of reliable and cost-effective power supply solutions. With a diverse product portfolio, MEANWELL serves industries ranging from automation to renewable energy.

MEANWELL Power Supply Series and Specifications

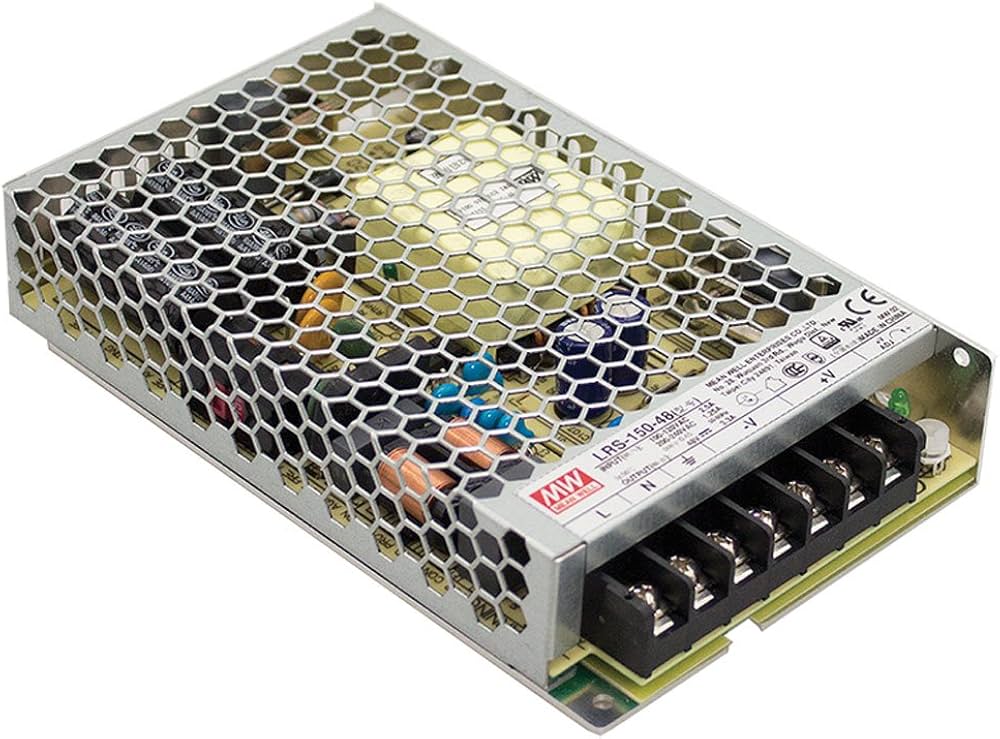

1. LRS Series

o Specifications

Parameter	Specification
Input Voltage	85-264 VAC
Output Voltage	5V, 12V, 24V, 48V
Power Ratings	35W, 50W, 75W, 100W, 150W, 200W, 350W

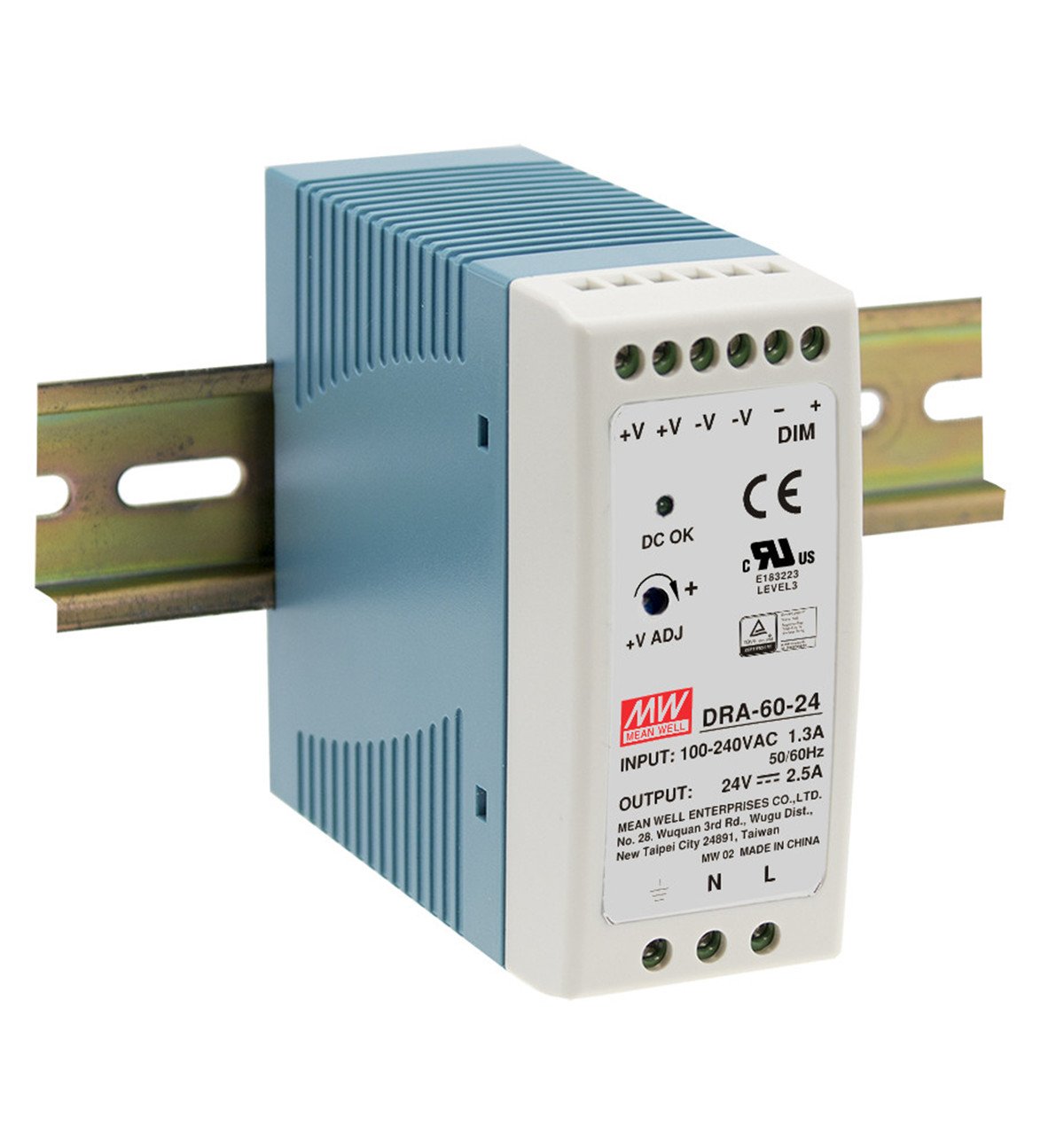

2.DR Series (DIN Rail Power Supplies)

o Specifications

Parameter	Specification
Input Voltage	90-264 VAC
Output Voltage	12V, 24V, 48V
Power Ratings	40W, 60W, 100W, 240W

3.RSP Series

o Specifications

Parameter	Specification
Input Voltage	85-305 VAC
Output Voltage	24V, 36V, 48V
Power Ratings	500W, 750W, 1000W, 1200W
