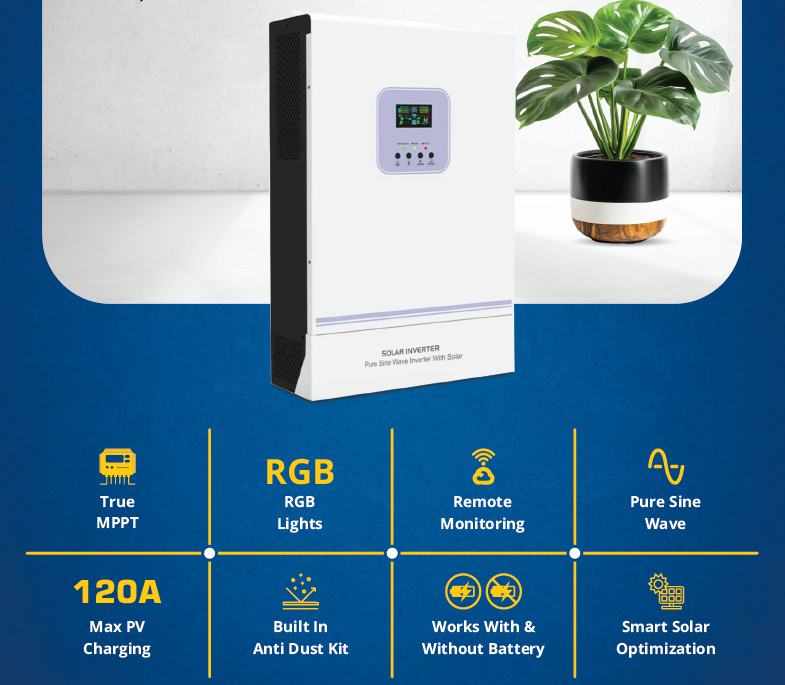

Hybrid Solar MPPT Inverter 10.2kW
Next-generation 10.2kW hybrid inverter featuring a Unity Power Factor (1.0) and Dual Output functionality for smart load management. Capable of running without a battery, it includes a built-in anti-dusk kit for harsh environments and supports Wi-Fi/GPRS remote monitoring.
Specifications
- • Capacity :10.2kW
- • Pv input voltage:90V–500V DC
- • Max charging current: 160A (Solar) / 140A (AC)
- • Efficiency:98% (Solar to AC)
- • Weight: 11kg
- • Communication:RS232/WIFI/GPRS
- • Dimensions:537mm x 390mm x 130mm
- • Ac output:230V (Single Phase)
- • Battery voltage:48V
Key Features
- • Output Power Factor 1.0 (Unity)
- • Dual Output (Main Load & Second Load)
- • Inverter can run without battery
- • Built-in 160A MPPT Solar Charge Controller
- • High PV input voltage range (90~500VDC)
- • Built-in anti-dusk kit for harsh environments
- • Smart battery charger design for optimized battery life
