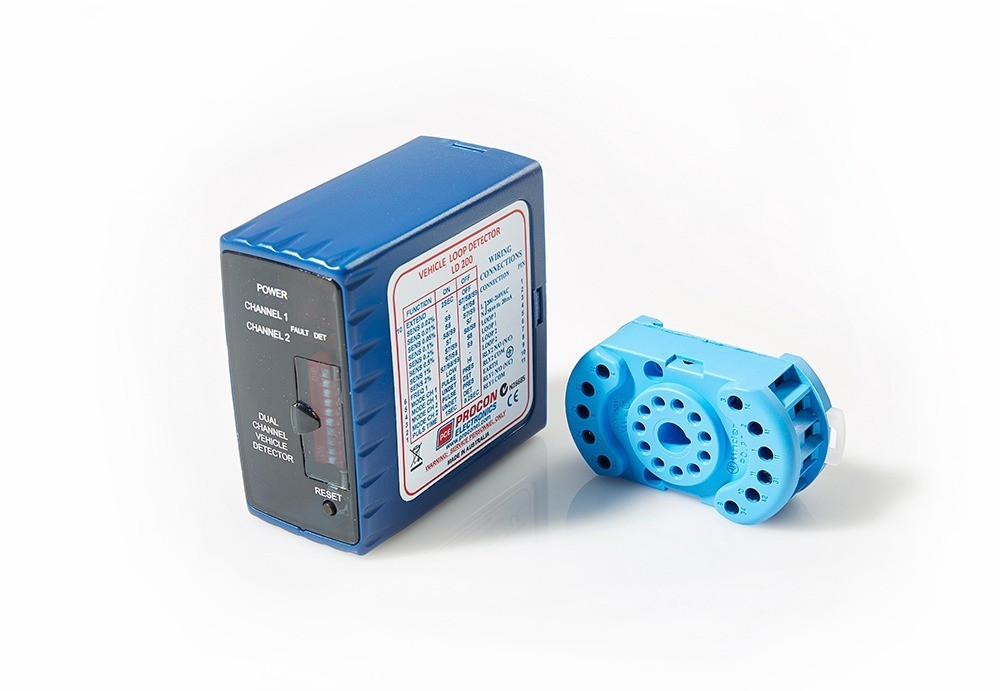

Exelcius Automation specializes in providing high-quality Loop Detectors, such as the Procon Loop Detector LD202 Dual Channel, designed for precision vehicle detection and traffic management systems. Our range of loop detectors is engineered for robust performance, reliability, and integration with modern intelligent traffic solutions. These detectors are widely used in highways, parking systems, toll plazas, and industrial automation applications.
Loop detectors function as essential components in vehicle detection systems by sensing the presence and movement of vehicles passing over an inductive loop installed in the ground. The Procon LD202 Dual Channel Loop Detector is a state-of-the-art solution that offers superior accuracy and operational efficiency for various traffic and access control applications.
• Simultaneous monitoring of two independent loops for enhanced coverage and precision.
• Ideal for complex traffic flow scenarios such as multi-lane tolls or parking exits.
• Operates efficiently within a range of 11–26 VAC/DC at 50/60 Hz.
• Maximum power consumption: 95mA, ensuring energy efficiency.
• Built to withstand harsh environments with robust housing and high-temperature tolerance.
• Compact form factor for easy installation in confined spaces.
• Multiple sensitivity levels to accommodate varying vehicle sizes and loop configurations.
• Sensitivity settings ensure optimal performance in diverse applications
• Quick detection and response to ensure real-time vehicle management.
• Reliable performance even under heavy traffic conditions.
• Automatically adjusts to the connected inductive loop, reducing the need for manual configuration.
• Eliminates interference from nearby electrical systems for consistent accuracy.
• Ensures continuous operation by providing fail-safe detection in case of system anomalies.
| Parameter | Specification |
|---|---|
| Model | Procon LD202 Dual Channel |
| Power Supply | 11–26 VAC/DC, 50/60 Hz |
| Power Consumption | 95mA maximum |
| Channels | Dual |
| Frequency | Adjustable in multiple ranges to avoid crosstalk |
| Response Time | <120 milliseconds |
| Housing Material | ABS/Polycarbonate, durable and weatherproof |
| Operating Temperature | -20°C to +70°C |
| Loop Inductance Range | 20µH to 1000µH |
• Toll Collection Systems : Accurate detection of vehicles at toll gates, ensuring seamless flow and reducing waiting times.
• Parking Management : Used in parking entry/exit systems to monitor vehicle movement and automate barrier controls.
• Traffic Management Systems : Implemented in Intelligent Traffic Management Systems (ITMS) for signal control and congestion management.
• Industrial Automation : Utilized in automated gates, loading docks, and factory entrances for vehicle control and safety.
• Access Control : Ensures secure and efficient access to restricted areas by detecting and authorizing vehicles.
